Details
The Passionate Pioneer
It will steel your heart.
The classic TransAM returns! After a seven-year hiatus, the reliable trail-shredding hardtail is back in the lineup for a limited time. Now with modern geometry, dual 29-inch wheels, a capable build spec or frameset options, and two classic color schemes, this will be one to hang on to and pass down for many generations. The updated geo encourages hard-charging but rewards thoughtful line choice. It orchestrates a fast-paced ballet through the landscape of your choosing. The new TransAM is ready for the core rider looking to get back to their roots.
SIMPLE IS FUN
For the rider who loves refined simplicity with the feeling of the wind in their face as they rip beautiful ribbons of terra firma in both directions, we give you the TransAM. The TransAM brings a feeling of nostalgia and reminds its rider of that first taste of freedom when they were young.
For those that watch The Wizard of Oz while listening to the dark side of the moon. For the Off-Road Cyclist. For the person who doesn't always have a plan but knows that whatever lies ahead will be a most excellent adventure. The TransAM pays homage to the free spirits of yesteryear who found rolling through the mountains on two wheels to be the best way to experience life.
LESS IS MORE
Tech keeps getting more complicated, the list of features gets longer, and the number of batteries keeps increasing. While we too are a bunch of bike nerds, excited about the latest and greatest, at our core we are mountain bikers who simply care about good dirt and good company. The new TransAM has no batteries, no motor, no apps, just a Chromoly frame that'll last a lifetime. In contrast to the times, we wanted to resurrect a bike that was clean and simple. With just enough updates and features like adjustable sliding dropouts, a UDH, and options for different wheel sizes, you can customize your bike to fit your style. Get the complete or the frame, either way, get out there and leave the fuss behind.
SM | MD | LG | XL | |
---|---|---|---|---|
A.REACH | 430 | 460 | 485 | 510 |
B.STACK | 641 | 641 | 646 | 655 |
C.EFFECTIVE TT LENGTH | 584 | 614 | 640 | 667 |
D.SEAT TUBE LENGTH | 370 | 400 | 430 | 460 |
E.EFFECTIVE ST ANGLE | 76.5° | 76.5° | 76.5° | 76.5° |
F.HEAD TUBE LENGTH | 105 | 105 | 110 | 120 |
G.HEAD TUBE ANGLE | 64.0° | 64.0° | 64.0° | 64.0° |
H.CHAINSTAY LENGTH | 425-437 | 425-437 | 425-437 | 425-437 |
I.WHEELBASE (Based on 425mm Chainstay Setting) |
1187 | 1219 | 1246 | 1276 |
J.BOTTOM BRACKET DROP | 50 | 50 | 50 | 50 |
K.ESTIMATED BB HEIGHT | 320 | 320 | 320 | 320 |
L.STAND OVER HEIGHT | 662 | 667 | 670 | 677 |
M.FORK OFFSET | 44 | 44 | 44 | 44 |
N.SEAT POST INSERTION | 250 | 280 | 320 | 350 |
Specs

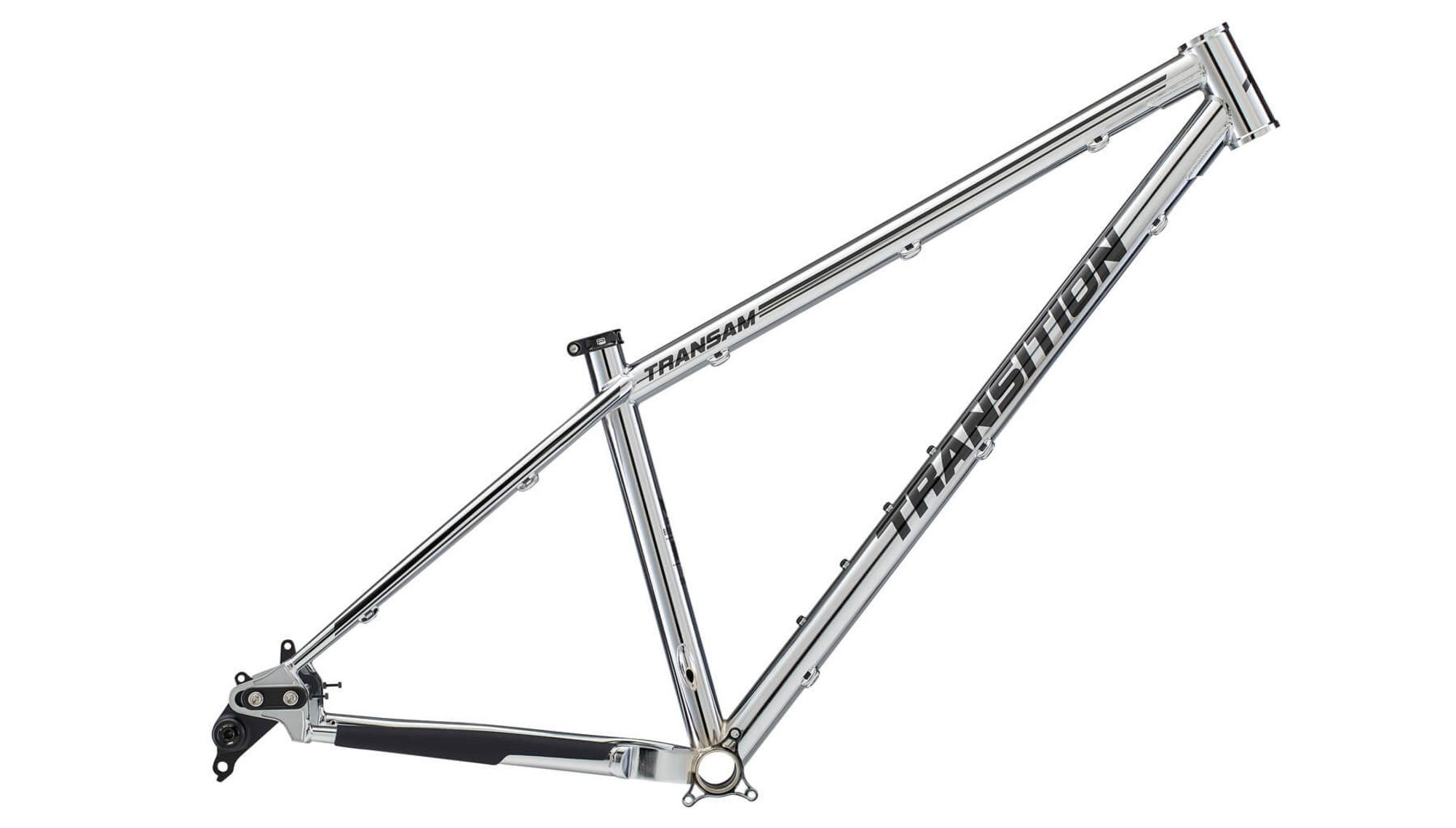

Frame | TransAM Chromoly Steel |
---|
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Chrome / Medium | 769165686459 | 01.24.10.1712 | 210000034213 |
