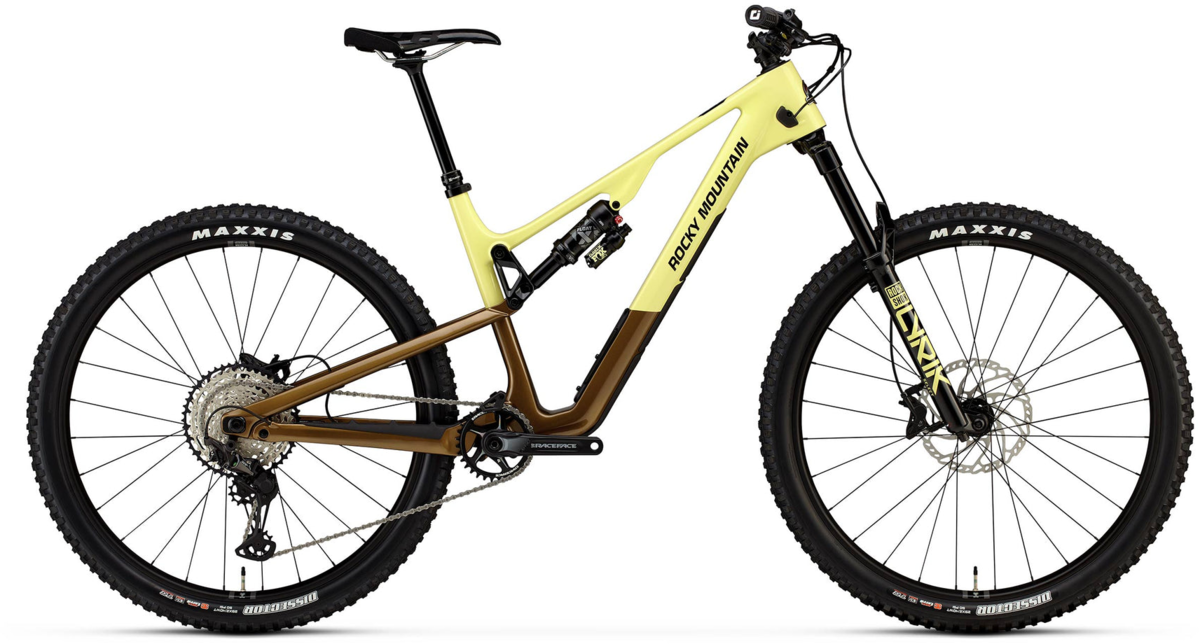

Rocky Mountain Instinct Carbon 50
This item is currently not available.
Details
The Instinct Carbon is at home on technical trails, but still allows you to push the distance and crush the climbs. Our most versatile platform just got more adventure-ready with updated the frame features, geometry, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Meet the Instinct Carbon.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 572 | 621 | 640 | 649 |
| Head Tube Angle (deg) | 63.5 | 63.5 | 63.5 | 63.5 |
| Head Tube Length (mm) | 100 | 110 | 125 | 135 |
| Seat Tube Angle (deg) | 76.5 | 76.5 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 365 | 410 | 440 | 470 |
| Rear Centre (mm) | 440 - 450 | 440 - 450 | 440 - 450 | 440 - 450 |
| Bottom Bracket Drop (mm) | 44 | 44 | 44 | 44 |
| Reach (mm) | 423 | 449 | 474 | 504 |
| Stack (mm) | 572 | 599 | 628 | 659 |
| Standover Height (mm) | 760 | 798 | 796 | 792 |
| Wheelbase (mm) | 1198 | 1227 | 1259 | 1293 |
| X-Small | 147.5 - 157.5 cm / 4’7” - 5'2” |
|---|---|
| Small | 152.5 - 167 cm / 5’0” - 5’6” |
| Medium | 162.5 - 177.5 cm / 5’4” - 5’10” |
| Large | 172.5 - 188 cm / 5’8” - 6’2” |
| X-Large | 183 - 198 cm / 6’0” - 6’6” |
Specs
| Fork | RockShox Lyrik Select RC 150mm | 27.5 = 37mm Offset | 29 = 42mm Offset |
|---|---|
| Hubs |
Front Hub: Rocky Mountain SL Sealed Boost 15mm Rear Hub: DT Swiss 370 Boost 148mm | 18T Star-Ratchet |
| Rims | WTB ST Light i30 TCS 2.0 Tubeless | 28H / Tubeless Ready - Tape / Valves Incl |
| Stem | Rocky Mountain 35 AM | 5° Rise | All Sizes = 40mm |
| Chain | Shimano M6100 |
| Frame | SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 140mm Travel. SMOOTHWALL™ Carbon Rear Triangle |
| Tires | F: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready // R: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready |
| Brakes | Shimano MT6120 4 Piston | Metal Pads |
| Saddle | WTB Volt Race 142 |
| Spokes | 2.0 Stainless |
| Headset | FSA Orbit NO.85 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Crankset | Race Face Aeffect Cinch | 32T | 24mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm |
| Seatpost | X Fusion Manic Alloy 30.9mm | Shimano MT500 Remote | XS = 125mm | SM = 150mm | MD - LG = 170mm | XL = 200mm |
| Shifters | Shimano XT |
| Handlebars | Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp |
| Rear Shock | Fox Float X Performance | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ |
| Tape/Grips | ODI Elite Pro Lock On |
| Bottom Bracket | Shimano SM-BBMT500 |
| Rear Derailleur | Shimano XT |
| Cassette/Freewheel | Shimano SLX 10-51T |
* Subject to change without notice.
