Details

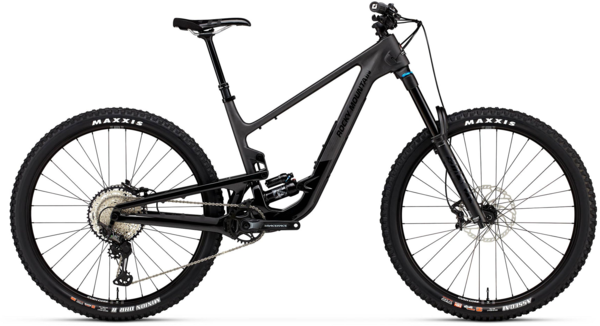

The Altitude Carbon is purpose-built to go fast and demolish steep trails. Fine-tune your ride by opting for full 29" or MX, using the built-in flip chip (sizes MD-XL) or adjust the RIDE-4™ with a single Allen key. Its total enduro capabilities can help you secure that "top step" and own those demanding group rides with confidence. The redesigned Altitude Carbon also features internal routing and the new PenaltyBox™ 2.0 downtube storage. With so much capability in your corner, it's time to push limits, climb faster, and charge. Enduro lives at Altitude.
MD | LG | XL | |
---|---|---|---|
Top Tube Horizontal (mm) | 584 | 610 | 642 |
Head Tube Angle (deg) | 62.9 | 62.9 | 62.9 |
Head Tube Length (mm) | 105 | 115 | 130 |
Seat Tube Angle (deg) | 77 | 77 | 77 |
Seat Tube Length (mm) | 410 | 440 | 470 |
Rear Centre (mm) | 440 | 450 | 450 |
Bottom Bracket Drop (mm) | 29 | 29 | 29 |
Reach (mm) | 450 | 475 | 505 |
Stack (mm) | 630 | 639 | 653 |
Standover Height (mm) | 791 | 797 | 808 |
Wheelbase (mm) | 1243 | 1282 | 1319 |
Frame Size | Measurements |
---|---|
Small | 152.5 - 167 cm / 5’0” - 5’6” |
Medium | 162.5 - 177.5 cm / 5’4” - 5’10” |
Large | 172.5 - 188 cm / 5’8” - 6’2” |
X-Large | 183 - 198 cm / 6’0” - 6’6” |
Specs
Frame | SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | BSA Bottom Bracket | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry |160mm Travel. SMOOTHWALL™ Carbon Rear Triangle |
---|---|
Fork | Fox 38 Float EVOL GRIP Performance Series 170mm | 27.5 = 37mm Offset | 29 = 44mm Offset |
Rear Shock | Fox Float X Performance | Sealed Bearing Eyelet | 40x10mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm | Size-Specific tune in FAQ |
Rims | WTB ST Light i30 TCS 2.0 Tubeless | 32H / Tubeless Ready - Tape / Valves Incl |
Hubs |
Front Hub: Rocky Mountain SL Sealed Boost 15mm Rear Hub: DT Swiss 370 Boost 148mm | 18T Star-Ratchet |
Spokes | DT Swiss Competition 2.0/1.8/2.0 |
Tires | F: Maxxis Assegai 2.5 WT 3C MaxxGrip EXO+ Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready // Cushcore Trail Tire Inserts | Lightweight | Tire & Rim Protection |
Bottom Bracket | Shimano Threaded BBMT501-B |
Crankset | Race Face Aeffect Cinch | 32T | 24mm Spindle | SM = 165mm | MD - XL = 170mm |
Shifters | Shimano SLX |
Rear Derailleur | Shimano XT |
Cassette/Freewheel | Shimano SLX 10-51T |
Chain | Shimano M7100 |
Brakes | Shimano XT Trail 4 Piston | Metal Pads |
Handlebars | Rocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp |
Tape/Grips | ODI Elite Pro Lock On |
Stem | Rocky Mountain 35 AM | 5° Rise | All Sizes = 40mm |
Headset | FSA Orbit NO.85 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
Seatpost | X Fusion Manic Alloy 30.9mm | Shimano MT500 Remote | SM = 150mm | MD = 170mm | LG - XL = 200mm |
Saddle | WTB Volt Race 142 |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Black/Carbon/Black / Large / 29-inch | 770416483192 | B0328LG2 | 210000030371 |
Green/Green / Medium / 29-inch | 770416483079 | B0328MD1 | 210000030373 |
Green/Green / Large / 29-inch | 770416483154 | B0328LG1 | 210000030375 |
Green/Green / X-Large / 29-inch | 770416483239 | B0328XL1 | 210000030377 |
