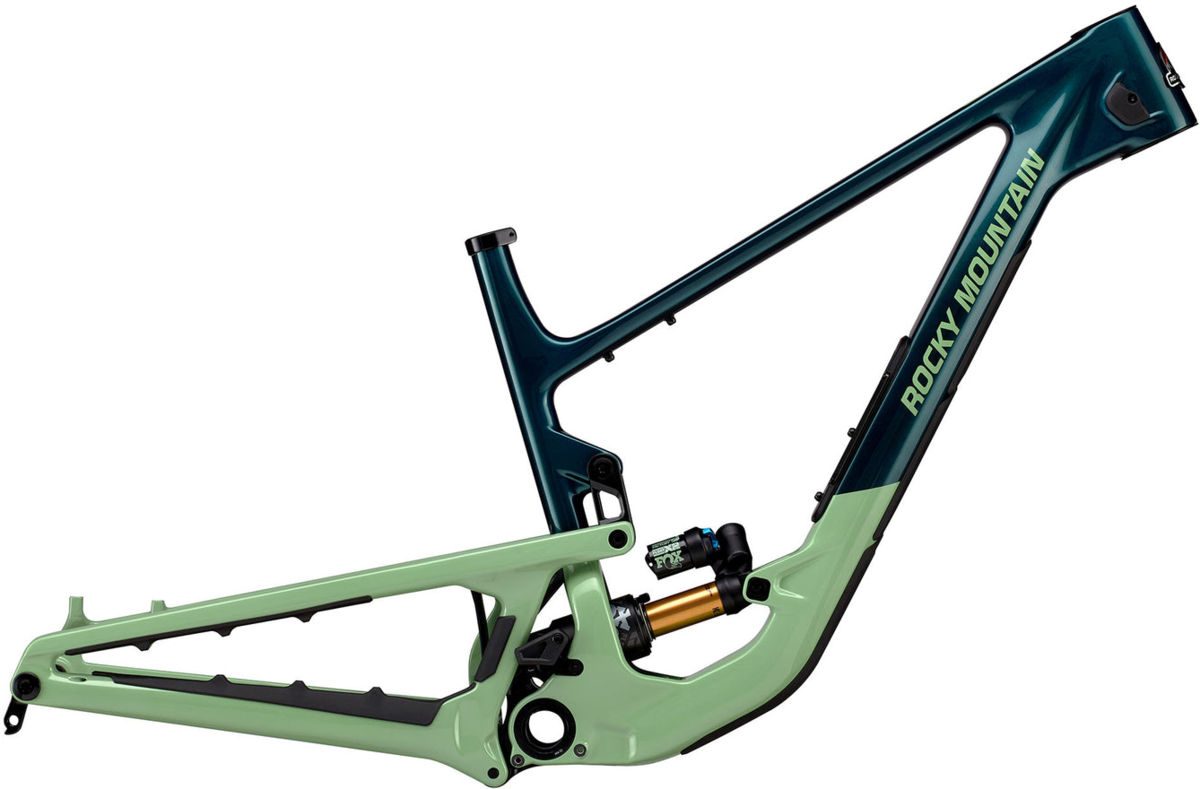

Rocky Mountain Altitude C Frameset
$4,100.00
Details
The Altitude Carbon is purpose-built to go fast and demolish steep trails. Fine tune your ride by opting for full 29" or MX, using the built-in flip chip (sizes MD-XL) or adjust the RIDE-4™ with a single Allen key. Its total enduro capabilities can help you secure that "top step" and own those demanding group rides with confidence. The redesigned Altitude Carbon also features internal routing and the new PenaltyBox™ 2.0 downtube storage. With so much capability in your corner, it’s time to push limits, climb faster, and charge. Enduro lives at Altitude.
| MD | LG | XL | |
|---|---|---|---|
| Top Tube Horizontal (mm) | 584 | 610 | 642 |
| Head Tube Angle (deg) | 62.9 | 62.9 | 62.9 |
| Head Tube Length (mm) | 105 | 115 | 130 |
| Seat Tube Angle (deg) | 77 | 77 | 77 |
| Seat Tube Length (mm) | 410 | 440 | 470 |
| Rear Centre (mm) | 440 | 450 | 450 |
| Bottom Bracket Drop (mm) | 29 | 29 | 29 |
| Reach (mm) | 450 | 475 | 505 |
| Stack (mm) | 630 | 639 | 653 |
| Standover Height (mm) | 791 | 797 | 808 |
| Wheelbase (mm) | 1243 | 1282 | 1319 |
Specs
| Frame | SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | BSA Bottom Bracket | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry |160mm Travel. SMOOTHWALL™ Carbon Rear Triangle |
|---|---|
| Rear Shock | Fox Float X2 Factory | Sealed Bearing Eyelet | 40x10mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm | Size-Specific tune in FAQ |
| Headset | FSA Orbit NO.85 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Green/Green / Large / 29-inch | 770416488883 | F0054LG1 | 210000032000 |
